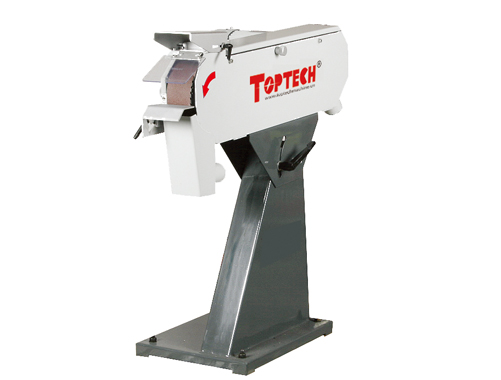

台式砂轮机 砂带机 BSM75
-
- 产品类别台式砂轮机/砂带机
- 订购价格7780【已含17%增值税】
- 规格型号BSM75
- 研磨范围
详细描述
BENCH GRINDER METAL BELT SANDER 台式砂轮机 砂带机 BSM75/150/75L/150L 参数说明：
| 型号Model | BSM75 | BSM150 | BSM75L | BSM150L |
| 货号Code No. | 3000753 | 3001503 | 3000751 | 3001501 |
| 砂带尺寸Dimension abrasive belt | 75x2000mm | 150x2000mm | 75x2000mm | 150x2000mm |
| 磨削刀架尺寸Grinding support size | 75x575mm | 150x575mm | 75x575mm | 150x575mm |
| 砂带速度Belt speed | 33m/s | 33m/s | 33m/s | 33m/s |
| 排屑管内径Nominal width suction pipe ID | 57mm | 57mm | 57mm | 57mm |
| 排屑管外径Nominal width suction pipe OD | 60mm | 60mm | 60mm | 60mm |
| 电机功率Motor power | 3KW 380V/50Hz | 4KW 380V/50Hz | 3KW 380V/50Hz | 4KW 380V/51Hz |
| 净重Net weight | 102kgs | 125kgs | 100kgs | 120kgs |
| 外形尺寸Dimension | 940x435x985mm | 940x510x985mm | 1250x640x640mm | 1250x700x700mm |
以上产品技术参数若未及时更新请谅解，有任何疑问请与公司技术部联系！
